SPLIT 8 COIL MM HUMBUCKER

MM SPLIT 8 COIL HUMBUCKER

PRICE. £240

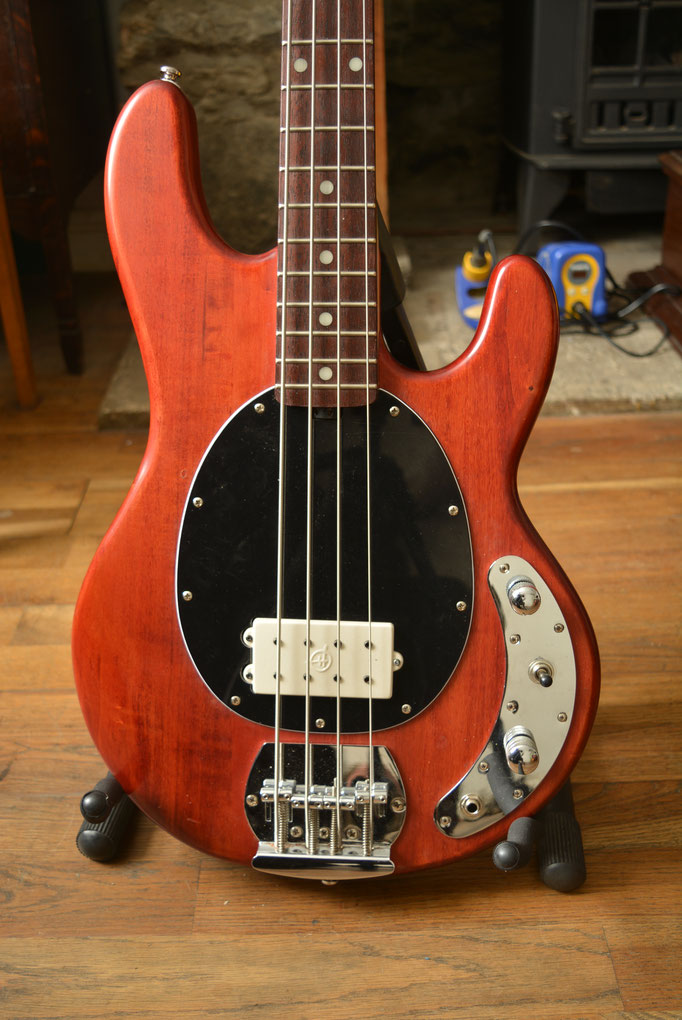

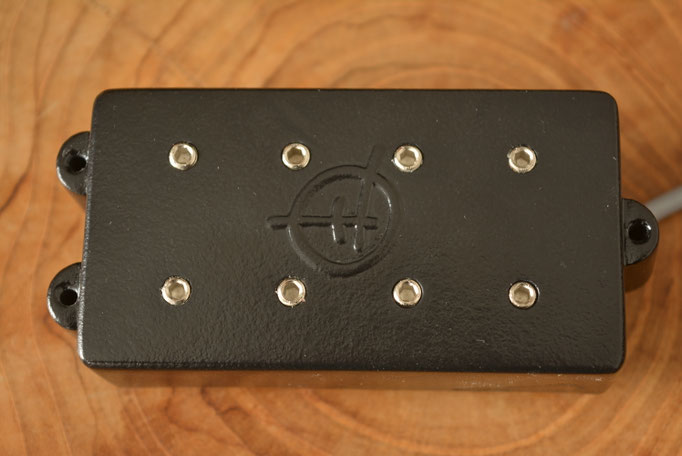

A split output 8 coil pickup designed as a replacement for MM & O.L.P style Bass Guitars with 3 outputs, all in humbucking mode. Featuring full Earth shielding & 8 individual Hand Scatter wound, (reverse wound, reverse polarity) matched coils. The Pickup is very quiet in operation with an absolute minimum of cross talk between strings.

The pickup has a near transparent bass response, giving a precise, full & detailed tone.  With this extended version of our standard 8 coil, different output configurations are available on this pickup in full humbucking mode.

These outputs are as follows

1. Split-P mode, front row on strings E & A, back row on strings D & G  (enhanced bass & treble)

2. Reverse S-P mode, front row on strings D & G, back row on strings E & A  (lighter bass & treble)

3. All 8 coils

These 3 outputs are accessible through either 2 volume pots or a mega switch selector

This pickup is suited to higher quality Instruments as the tone woods used in a Bass Guitar play a big part in the overall tonal qualities with a pickup of this type fitted.

This pickup can be wired passively in a similar layout as a jazz bass or can be used with the factory MM electronics, using a selector switch to access the different outputs.

PLEASE NOTE: The split 8 coil pickup sits deeper in a Bass Guitar than a standard MM type humbucker. Instruments require a pickup cavity with a minimum 25 mm depth to use the split 8 coil pickup. To use this type of pickup in a standard Instrument, may require a reworking of the pickup cavity, please contact us for more information.

SPEC.

Adjustable height steel poles & Neodymium rare earth Magnets

8 coils, individually Hand scatter wound with 42 AWG plain Enamel wire 16- 20 K.Ohm output D.C.

(please contact for other output options)

Full earth shielding

5 Point wiring for full Humbucking /  split-p & reverse split-p hook up  options when used with a selector switch or 2 x volume pots.

Wax saturated (potted) against Microphonic feedback

Standard Coil Magnet polarities: Front: South, Rear: North

Hand-made covers with colour options

DIMENSIONS.

Length 102 mm  Width 49 mm  Height 28 mm

String spacings 57 mm  Screw spacings 95 mm

PRICE. £240

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
