J4 Soapbar Multi-coil Pickups

J4 multi-coil mini in split output Humbucker version
J4 multi-coil mini in split output Humbucker version

PRICE. £150 per single pickup

PRICE. £280 per pickup pair



A multi-coil replacement for 2 popular Soap bar types. Designed to replace Factory pickups of B4 / Bc4 type & Bart Mk 1 & 2. Both Our J4 multi-coil types have identical internals, only the cover is different allowing for use on many popular Bass Guitars & Custom builds.

The J4 standard has a footprint of 108mm X 34mm, while the J4 mini has a footprint of 100mm X 29mm. Both these J4 types require a pickup cavity depth of 25mm to fit as the internal technology sits deeper in an instrument than a standard factory Soap bar unit. The trade-off for the deeper cavity is a sweeter tone, characteristic of all the multi-coil pickups we produce, with precise tonal definition & a pickup that is almost silent in operation due to the extra Earth shielding. As with our Popular 8 & 10 coil units, we have built the J4 Soap bar  pickup in 4 very different output types.

--------------------------------------------

Type 1.

4 Coil Pseudo single coil, basically 4 coils wired in series for a clear & open tone associated with single coil pickups.



Type 2.

4 coil Humbucker, with coil split for series / parallel wiring options or direct output to connect to existing Bass preamps with a simple 2 wire hook-up.



Type 3.

4 coil, 1 Single coil per string for use with Lusithand's NFP special pre-amps to give a mind bending expansion of Tonal possibilities.



Type 4.

8 coil. 1 Humbucker per string (over 2 pickups, interconnected),  Also for use with a Lusithand NFP special pre-amp & other coil balancing pre-amps. The 1 humbucker per string / NFP special set-up gives a similar output as type 3 but with the Fat Humbucking output.



Type 1 & 2 above can be used both passively or via a regular type pre-amp while types 3 & 4 cannot be used passively & require a special coil balancing pre-amp to use on your Instrument.

------------------------------------------

SPEC.

Neodymium rare earth Magnets.

4 coils, individually Hand scatter wound with 42 AWG plain Enamel wire.

8-11K.Ohm output D.C per pickup

(please contact for other output options)

Full earth shielding

5 Point wiring for full Humbucking or 2x pseudo single coil  hook up  options

Wax saturated (potted) against Microphonic feedback

Standard Coil Magnet polarities: Front: South, Rear: North

Hand-made covers with colour options

---------------------------------------------------

DIMENSIONS.

J4 standard.

Length 108mm  Width 34mm

Height 26mm

String spacings up to 60mm

Screw spacings 95mm

------------------------------------------------------

DIMENSIONS.

J4 Mini.

Length 100mm  Width 29mm

Height 26mm

String spacings up to 60mm

Screw spacings 90mm

---------------------------------------------------

PRICE. £150 per single pickup

PRICE. £280 per pickup pair

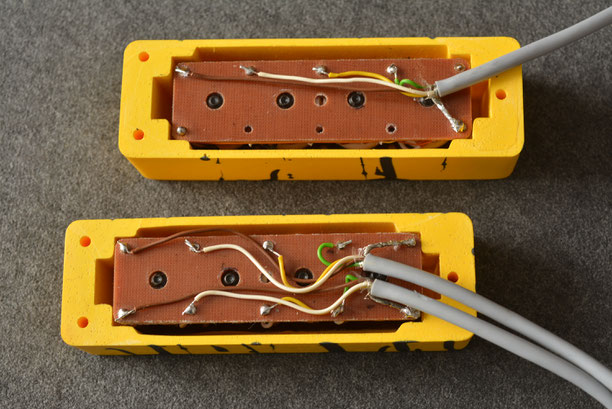

J4 multi-coil standard pair. 1 Humbucker per string output over 2 interconnecting pickups
J4 multi-coil standard pair. 1 Humbucker per string output over 2 interconnecting pickups

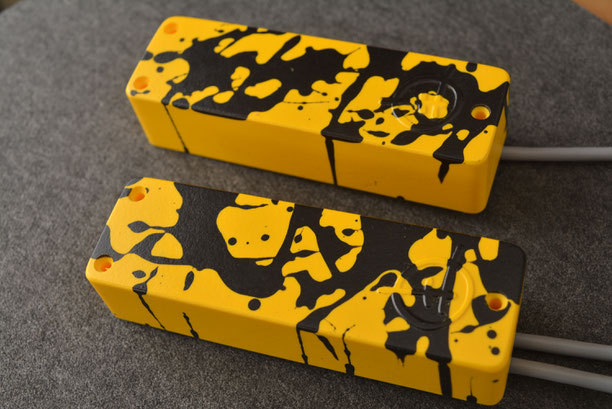

2 shot colour, custom covers.
2 shot colour, custom covers.
