SPLIT P 65' HUMBUCKING PICKUP

SPLIT P 65' HUMBUCKER
SPLIT P 65' HUMBUCKER

PRICE £90

Based on the CBS era, lower output  Humbucking split coil pickup. Using Reverse Wound coils & Reverse Polarity Magnets  to cancel Hum across the 2 coils for a pickup that’s quieter in operation than a single coil . Features a brighter response with the tonal range emphasis on the high’s & low’s & with an open sound quality characteristic of  hand scatter wound pickups

SPEC:

AlNiCo 5 or Neodymium  Magnets

Hand scatter wound with 42AWG plain enamel wire

 10.6 K.Ohms  output D.C   (please  contact for other output options)

Rivet anchored coil ends

Tough Phenol or Fibre flatwork as standard

Modern earth shielded or cloth covered hook-up wire

Wax saturated (potted) against microphonic feedback

Standard Coil Magnet polarities Front: South, Rear: North

Handmade covers with colour options

DIMENSIONS:

Length 66mm  Width 28mm   Height 18mm ( Neodymium & AlNiCo magnet versions )

Screw spacings : 60.5mm

 PRICE  £ 90

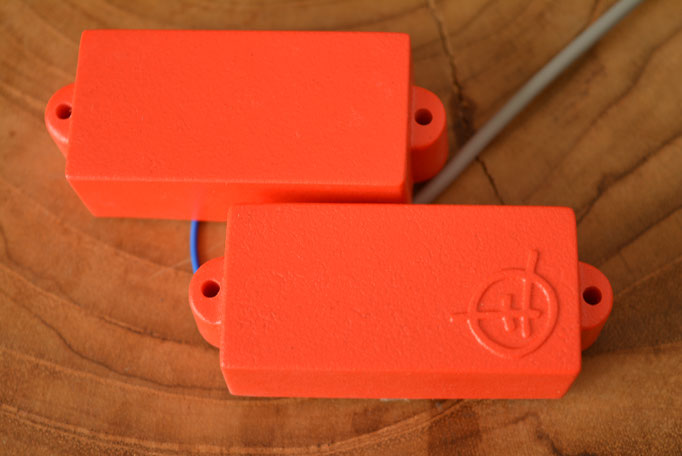

Split-p in Red
Split-p in Red
