J4 Soap bar single coil version

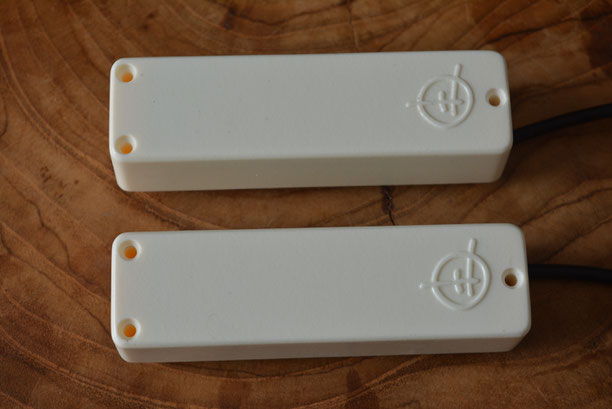

J4 mini in White
J4 mini in White

£75 per single pickup

£140 per matched pair



A High output single coil drop-in replacement for 2 popular Soap bar types. Designed to replace Factory pickups of B4 / Bc4 type & Bart Mk 1 & 2. Both Our J4 High output single coil types have identical internals, only the cover is different allowing for use on many popular Bass Guitars & Custom builds.

The J4 standard

has a footprint of 108mm X 34mm, while the J4 mini

has a footprint of 100mm X 29mm. Both these J4 types have been designed to replace a low output, standard, factory built Soap bar  With a punchy, clear & open toned  Custom pickup made from the best materials available.

------------------------------------------

SPEC.

Neodymium rare earth Magnets.

Hand scatter wound coil with 42 AWG plain Enamel wire.

8-10K.Ohm output D.C per pickup

(please contact for other output options)

Full Earth shielded hook-up wire

Wax saturated (potted) against Microphonic feedback

Standard Coil Magnet polarities:

Neck: South, Bridge: North

Hand-made covers with colour options

---------------------------------------------------

DIMENSIONS.

J4 standard.

Length 108mm  Width 34mm

Height 21mm

String spacings up to 60mm

Screw spacings 95mm

------------------------------------------------------

DIMENSIONS.

J4 Mini.

Length 100mm  Width 29mm

Height 21mm

String spacings up to 60mm

Screw spacings 90mm

---------------------------------------------------

PRICE. £75 per single pickup

PRICE. £140 per Matched pair

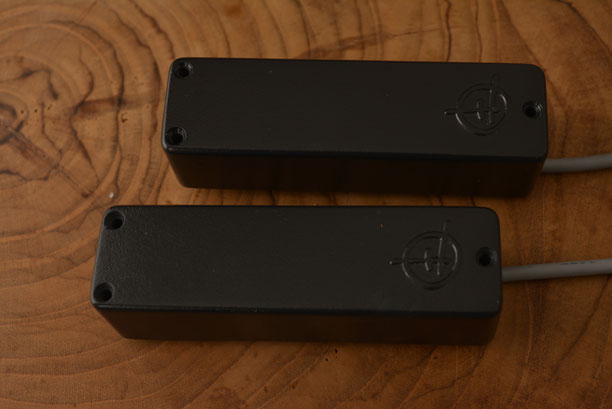

J4 standard in Black
J4 standard in Black

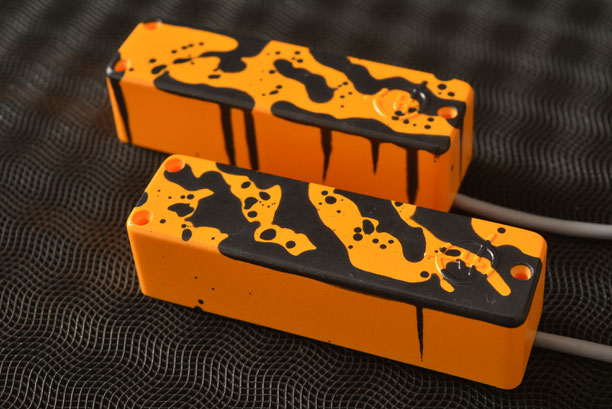

J4 mini in 2 shot Rorschach finish
J4 mini in 2 shot Rorschach finish

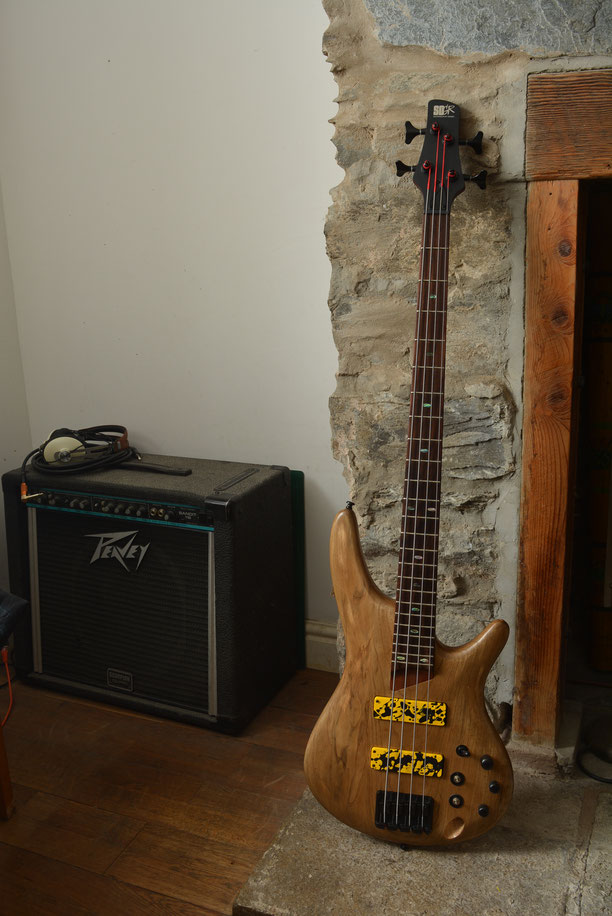

Ibanez bass with Custom J4 multicoil pickups & a Lusithand N.F.P preamp
Ibanez bass with Custom J4 multicoil pickups & a Lusithand N.F.P preamp

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
