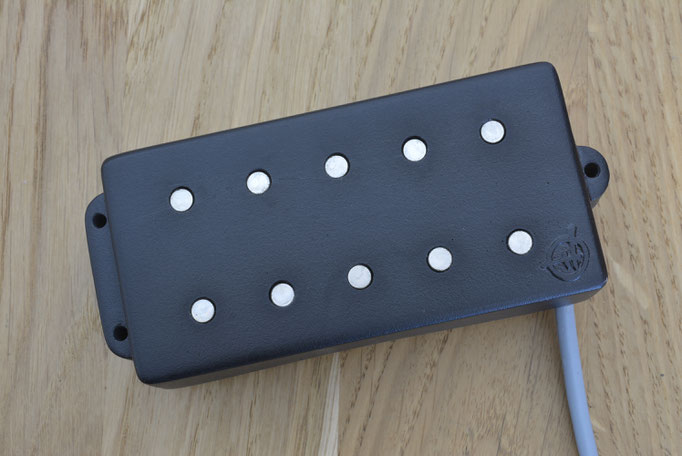

MM 5 GHOST COIL HUMBUCKER

MM 5 FACTORY TYPE

MM OLP TYPE

PRICE £140

A  replacement pickup for 5 string MM Factory type & MM O.L.P type Bass Guitars. Featuring a 3rd GHOST coil which is connected to the neck coil. This sit's deeper in an instrument than a regular Humbucking pickup & will require a pickup cavity depth of 30 mm .

Featuring Steel poles with individual Neodymium rare earth Magnets . At 24 K.Ohm D.C ,the pickup has a hotter output than standard MM , O.L.P replacement units . Hand scatter wound , (reverse wound, reverse polarity) coils . The Ghost coil pickup has a clean tone, perfect for recording which has none of the associated Junk frequencies,  noise or muddiness of a standard MM unit. connects directly to existing MM factory electronics or can be wired passively.

Fully earth shielded for low noise. A powerful upgrade,  requiring a cavity depth of 30 mm for use in your instrument.

SPEC.

Steel poles & individual Neodymium rare earth Magnets

Hand scatter wound with 42 AWG plain enamel wire 24 K.Ohm output D.C

(please contact for other output options)

Rivet anchored coil ends

Tough Phenolic flatwork as standard

5 point wiring for full Humbucking or 2x single coil options (RW,RP)

Wax saturated (potted) against Microphonic feedback

Standard Coil Magnet polarities Front: South, Rear:  North

Handmade covers with colour options

DIMENSIONS.

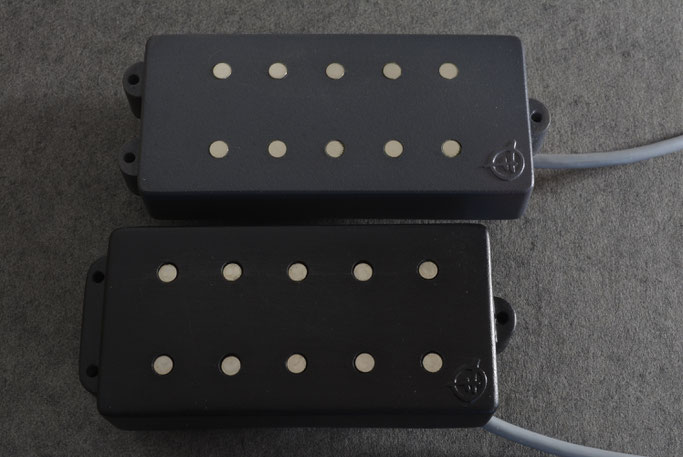

MM Factory type

Length 112 mm  Width 50 mm Height 30 mm

Screw spacings: 103 mm

Pole spacings: 1-5 = 66.9 mm

PRICE  £140

----------------------------------------------------------------------------------

DIMENSIONS.

MM OLP Type

Length 118 mm Width 50 mm Height 30 mm

Screw spacings; 111 mm

Pole spacings; 1-5 = 62.25 mm

PRICE  £140
