4 COIL SPLIT-P HUMBUCKER

4 COIL SPLIT-P  HUMBUCKER
4 COIL SPLIT-P HUMBUCKER

PRICE £140

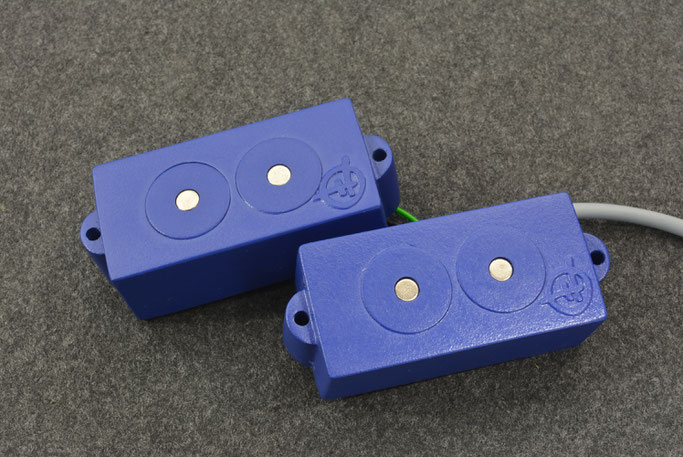

Based on the 1958 Flat pole Humbucking split coil pickup that replaced the Tele’ style Bass. Using our Multi-coil technology Reverse Coil windings with Reverse Polarity Magnets, to cancel Hum across the 4 coils for a pickup that’s whisper quiet in operation . This ultra modern take on the well loved Split-P  features a Huge, clear output with wide reaching gravelly lows, A very unique mid range presence which verges on the aggressive  & a detailed high end. This bass pickup has at it's core, a set of Alnico 5 magnets which are boosted by a 2nd set of Neodymium magnets. This is where the extra Tone is created in this unique set up. A great choice for a single pickup instrument, especially when used for recording work due to the fully earth shielded coils. Wax saturated coils as standard & with a full resin potting to protect the delicate internals. The 4 coil Split-P is Literally, a game changer.

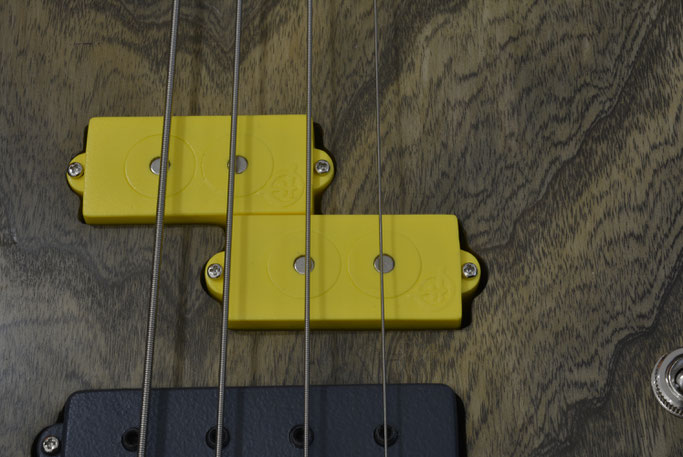

THIS UNIT CAN BE USED AS A DROP IN REPLACEMENT FOR A STANDARD SPLIT-P TYPE BASS AS LONG AS THE PICKUP CAVITY IS AT LEAST 22 MM DEEP.



SPEC:

AlNiCo 5 & Neodymium Magnets as standard

Hand scatter wound with 42AWG plain enamel wire

11.3 K.Ohms  output D.C

 (please contact for other output options)



Modern earth shielded hook-up wire

Wax saturated (potted) against microphonic feedback

Standard Coil Magnet polarities Front: South, Rear: North

Handmade covers with colour options



DIMENSIONS:

Length 66 mm  Width 28 mm   Height 22 mm

Screw spacings : 60.5mm

Pole spacings : 18.75 mm



PRICE £140

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
