NEO-Stratocaster single coil set for Guitar.

NEODYMIUM  Franken-Strat single coil pickups set by Herrickpickups
NEODYMIUM Franken-Strat single coil pickups set by Herrickpickups

PRICE: Single pickup: £ 60  /  Set of 3: £ 170

Inspired by the “EVH FRANKEN-STRAT”  pickup , the NEO-STRAT set of replacement single coil pickups features a middle pickup with Reverse Windings & Reverse Polarity Magnets to help Hum cancelling . Enhancement of clarity & definition from the over wound coils produce brittle highs , a bright midrange & stoic lows . The hand scatter wound Tough Phenol coils & modern Neodymium rare earth Magnets give a clear & modern tonal experience in a visually striking set of pickups

SPEC:

Neodymium rare earth Magnets

Hand scatter wound with 42AWG plain enamel wire

Rivet anchored coil ends

Modern earth shielded hook up wire

Tough Phenol flatwork as standard

Wax saturated (potted) against microphonic feedback

Standard outputs: Neck: 6.0 / Middle: 6.4 / Bridge: 6.8 K.Ohms D.C

Standard Coil Magnet polarities: Neck: South, Middle: North, Bridge: South





(please contact for other output options)

DIMENSIONS:

Length: 82.5mm    Width: 25mm    Height: 23mm

String spacing 1-6  Neck: 50 mm / Middle & Bridge: 52 mm



PRICE ;Single pickup: £ 60  /  Set of 3: .£ 170

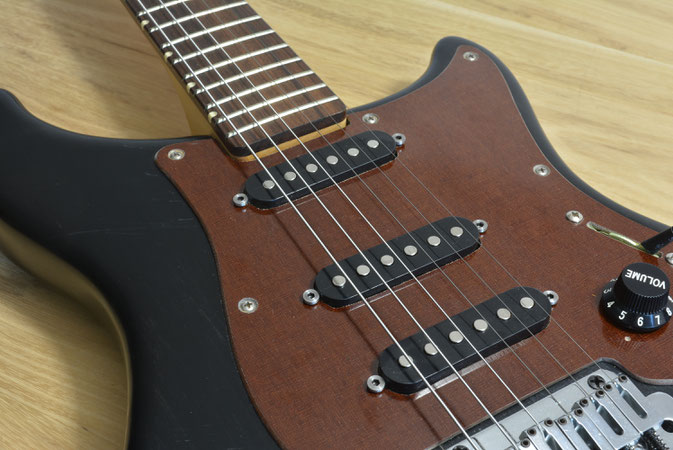

WESTONE CUTLASS DESIGNED BY SID POOLE, RETRO FITTED WITH NEO-STRAT SINGLE COIL SET
WESTONE CUTLASS DESIGNED BY SID POOLE, RETRO FITTED WITH NEO-STRAT SINGLE COIL SET

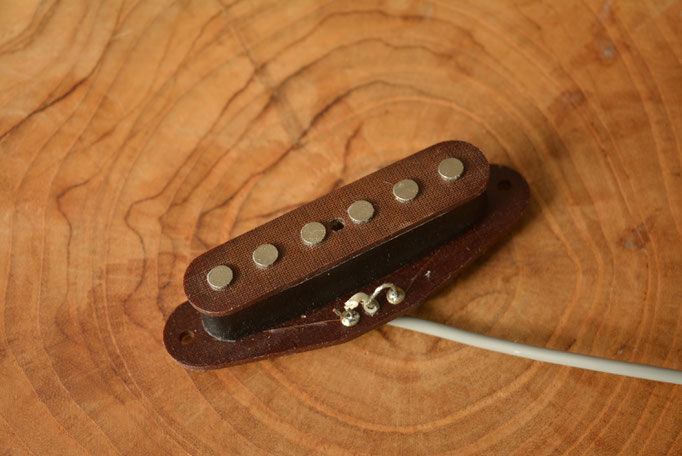

HAND WOUND STRAT SINGLE COIL PICKUPS WITH PHENOL FLATWORK BOBBINS & NEODYMIUM MAGNETS
HAND WOUND STRAT SINGLE COIL PICKUPS WITH PHENOL FLATWORK BOBBINS & NEODYMIUM MAGNETS
Neodymium magnet version Franken-Strat Single coil pickup
Neodymium magnet version Franken-Strat Single coil pickup
