NEW 10 Coil mini for 5 string Bass ( 40 HZ type )

PRICE. £290 each

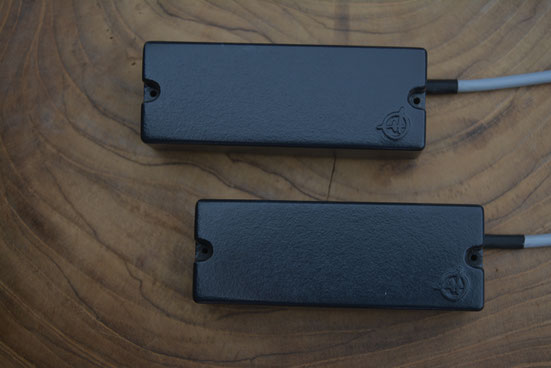

Our all new 10 COIL MINI

Designed as a replacement for Factory type 5 string Bass Guitars using the Soap-Bar sized or 40-HZ type pickup. Featuring full Earth shielding & 10 individual Hand Scatter wound, (reverse wound, reverse polarity), matched coils . The Pickup is very quiet in operation with an absolute minimum of cross talk between strings.

Wired directly as a full Humbucker , the pickup has a near transparent bass response , giving a precise, full & detailed tone. Wired as 2 pseudo single coils, produces a slightly brighter response with a sweetness , exceptional clarity & definition with minimum noise.

This pickup is suited to higher quality Instruments as the tone woods used in a Bass Guitar play a big part in the overall tonal qualities with a pickup of this type fitted..

Connects directly to Series wired, standard factory electronics or can be wired passively. Instruments require a pickup cavity with a minimum 22mm depth to use the 10 coil MINI pickup. This pickup is highly suited to hand made Bass guitars & Franken-Basses using existing Necks & Bodies of a high build quality.

SPEC.

Individual Neodymium rare earth Magnets

Hand scatter wound coils with 42 AWG plain enamel wire

12 K.Ohm + output D.C

5 point wiring on all 3 model options;

---------------------------------------------------------

Option 1. standard 10 coil MINI pickup

Available Coil outputs=

All 10 coils / full humbucker +

2x pseudo single (5) coil outputs

---------------------------------------------------------

Option 2. split 10 coil MINI pickup

All 10 coils / full humbucker + Split-p & reverse Split-p outputs =maximum tonal flexibility

---------------------------------------------------------

Option 3. 1 Humbucker per string 10 coil MINI pickup.

PLEASE NOTE* this version can only be used with an active coil balancing pre-amp* & has a single output option of all 10 coils together.

---------------------------------------------------------

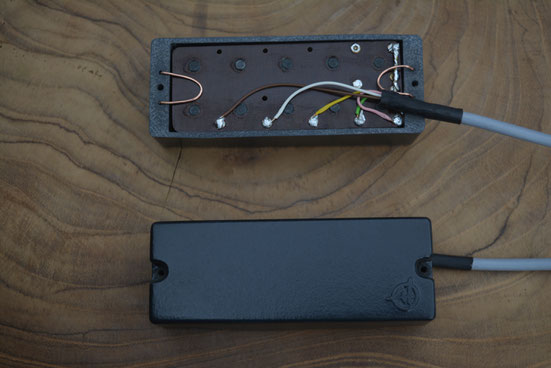

All of our 10 coil MINI pickups are Wax saturated (potted) against Microphonic feedback. just like our popular MM 10 Coil.

Standard Coil Magnet polarities

Front: South,

Rear: North

Handmade covers with many colour options as standard. Including Black & White

DIMENSIONS.

Length 101.6 mm Width 38 mm

Height 23 mm

Screw spacings: 93.5 mm

Pole spacings: variable,

between 16.5 mm & 19 mm

PRICE. £290
